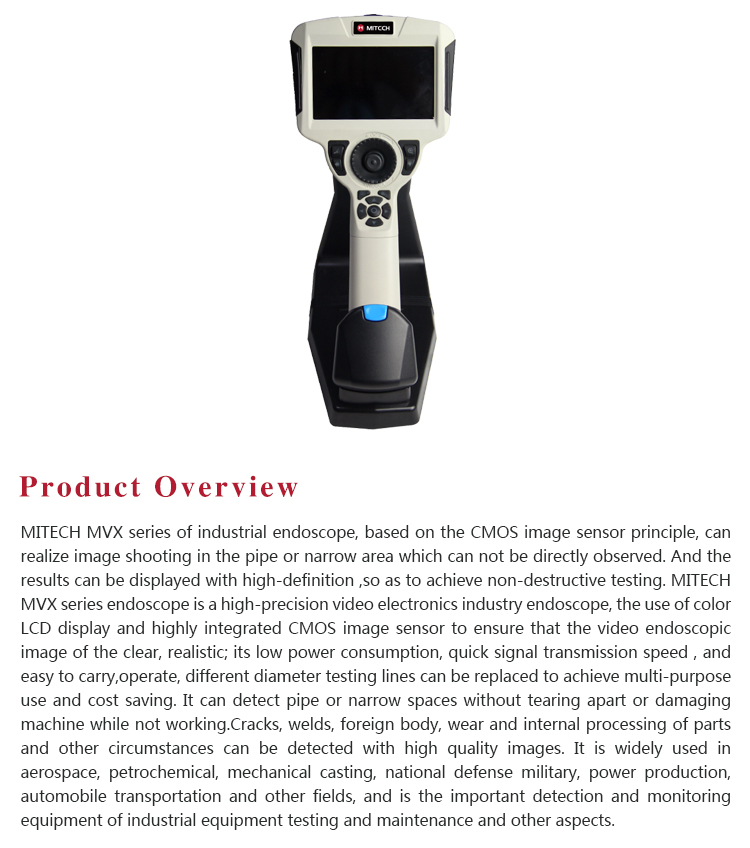

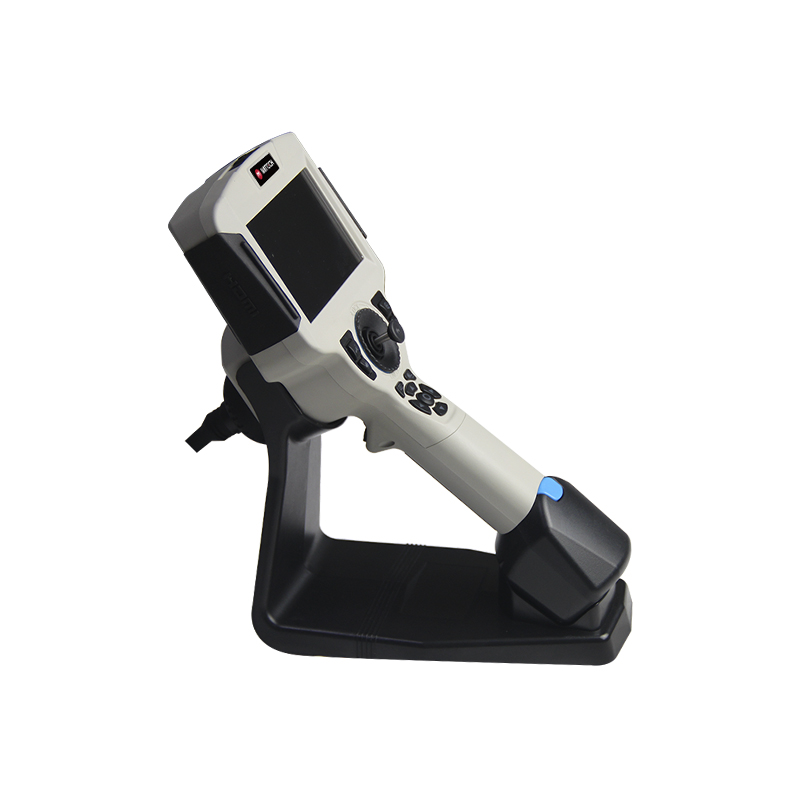

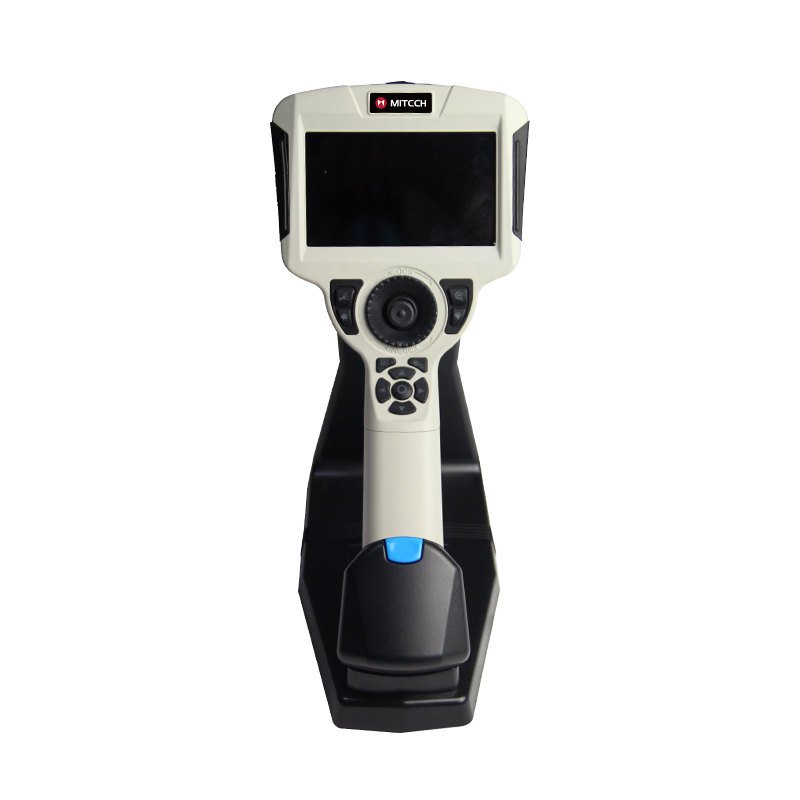

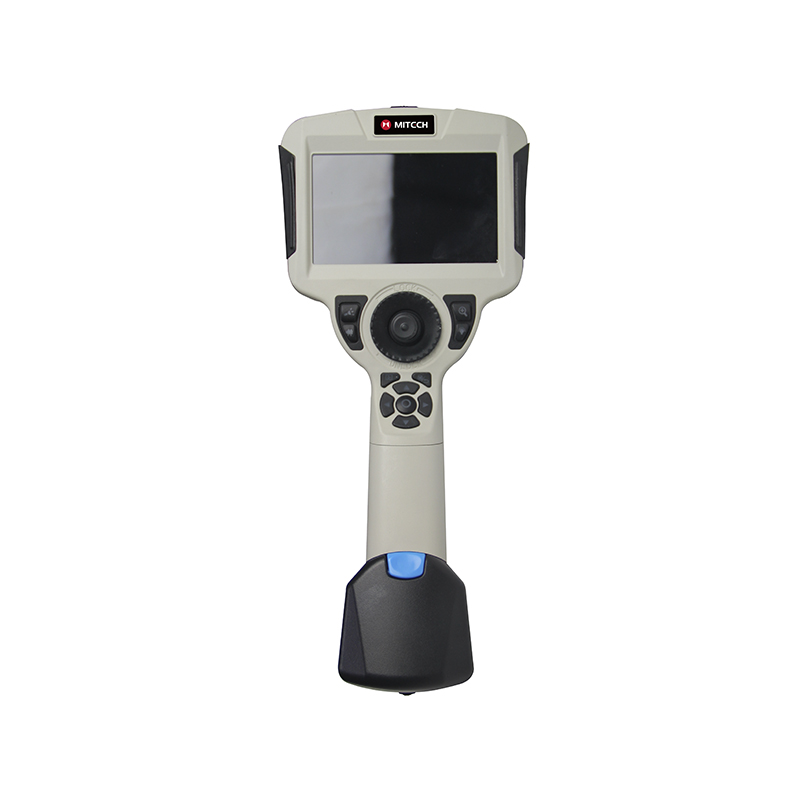

Product OverviewMITECH MVX series of industrial endoscope, based on the CMOS image sensor principle, can realize image shooting in the pipe or narrow area which can not be directly observed. And the results can be displayed with high-definition ,so as to achieve non-destructive testing. MITECH MVX series endoscope is a high-precision video electronics industry endoscope, the use of color LCD display and highly integrated CMOS image sensor to ensure that the video endoscopic image of the clear, realistic; its low power consumption, quick signal transmission speed , and easy to carry,operate, different diameter testing lines can be replaced to achieve multi-purpose use and cost saving. It can detect pipe or narrow spaces without tearing apart or damaging machine while not working.Cracks, welds, foreign body, wear and internal processing of parts and other circumstances can be detected with high quality images. It is widely used in aerospace, petrochemical, mechanical casting, national defense military, power production, automobile transportation and other fields, and is the important detection and monitoring equipment of industrial equipment testing and maintenance and other aspects.

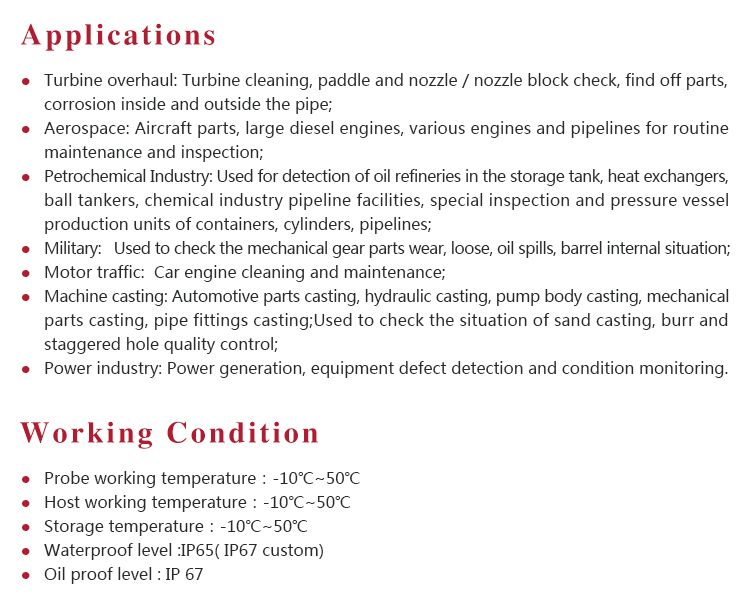

Function & applicationl Turbine overhaul: Turbine cleaning, paddle and nozzle / nozzle block check, find off parts, corrosion inside and outside the pipe;
l Aerospace: Aircraft parts, large diesel engines, various engines and pipelines for routine maintenance and inspection;
l Petrochemical Industry: Used for detection of oil refineries in the storage tank, heat exchangers, ball tankers, chemical industry pipeline facilities, special inspection and pressure vessel production units of containers, cylinders, pipelines;
l Military: Used to check the mechanical gear parts wear, loose, oil spills, barrel internal situation;
l Motor traffic: Car engine cleaning and maintenance;
l Machine casting: Automotive parts casting, hydraulic casting, pump body casting, mechanical parts casting, pipe fittings casting;Used to check the situation of sand casting, burr and staggered hole quality control;
l Power industry: Power generation, equipment defect detection and condition monitoring.

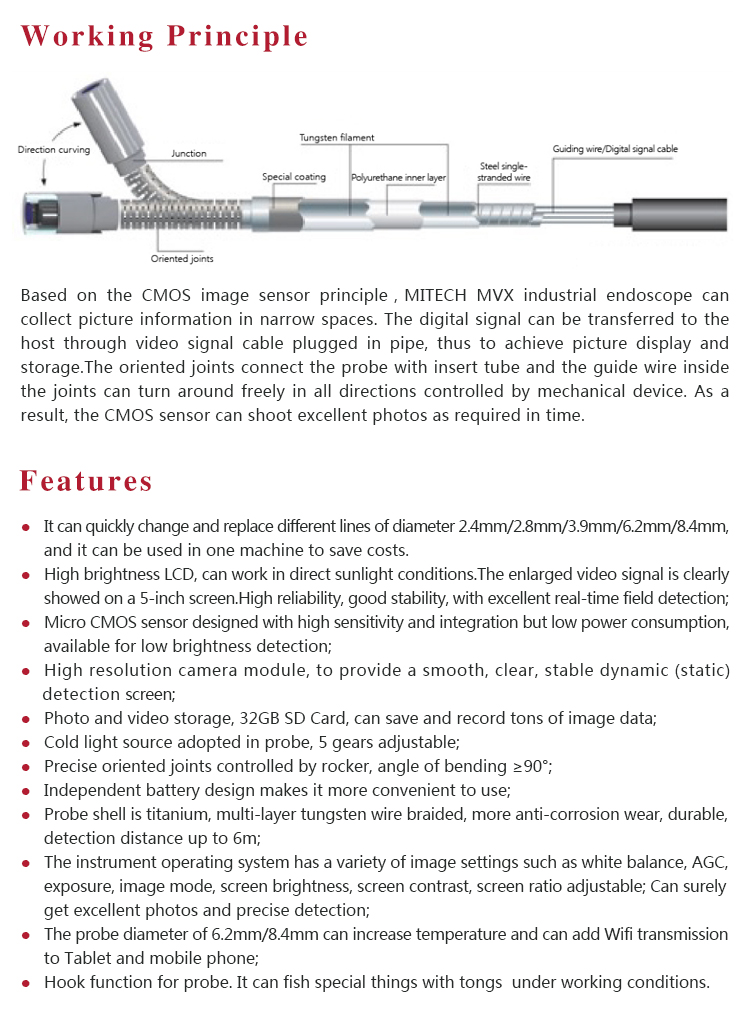

Working PrincipleBased on the CMOS image sensor principle，MITECH MVX industrial endoscope can collect picture information in narrow spaces. The digital signal can be transferred to the host through video signal cable plugged in pipe, thus to achieve picture display and storage.The oriented joints connect the probe with insert tube and the guide wire inside the joints can turn around freely in all directions controlled by mechanical device. As a result, the CMOS sensor can shoot excellent photos as required in time.
Working Conditionsl Probe working temperature：-10℃~50℃
l Host working temperature：-10℃~50℃
l Storage temperature：-10℃~50℃
l Waterproof level :IP65( IP67 custom)
l Oil proof level : IP 67
Instrument Featuresl It can quickly change and replace different lines of diameter 2.4mm/3.9mm/6mm/8mm, and it can be used in one machine to save costs.
l High brightness LCD, can work in direct sunlight conditions.The enlarged video signal is clearly showed on a 5-inch screen.High reliability, good stability, with excellent real-time field detection;
l Micro CMOS sensor designed with high sensitivity and integration but low power consumption, available for low brightness detection;
l High resolution camera module, to provide a smooth, clear, stable dynamic (static) detection screen;
l Photo and video storage, 32GB SD Card, can save and record tons of image data;
l Cold light source adopted in probe, 5 gears adjustable;
l Precise oriented joints controlled by rocker, angle of bending ≥90°;
l Independent battery design makes it more convenient to use;
l Probe shell is titanium, multi-layer tungsten wire braided, more anti-corrosion wear, durable, detection distance up to 6m;
l The instrument operating system has a variety of image settings such as white balance, AGC, exposure, image mode, screen brightness, screen contrast, screen ratio adjustable; Can surely get excellent photos and precise detection.
l The probe diameter of 6.2mm/8.4mm can increase temperature and can add Wifi transmission to Tablet and mobile phone
l Hook function for probe. It can fish special things with tongs under working conditions
Operating Method and AttentionsInstrument Maintenancel Don’t use the instrument if the temperature is not in -10°C～50°C in case that you may damage the probe;
l Do not use or place the product in a corrosive environment;
l Do not expose the product to rain. Do not place the probe in a liquid for a long time;
l Do not place the product near strong magnetic objects;
l Do not use it if there is too much dust in the environment;
l Keep the body clean and avoid scratching the screen;
l Do not attempt to disassemble the product yourself. The repairing service is limited by the original authorized staff;
l Do not operate the joystick while the wire is in circle in case it being damaged;
l While shooting , make sure the brightness is OK and probe should be stable;
l Before using, you should check if the battery is in or about to die;
l After use, adjust the joystick to make joints straight and then pull out. Avoid pulling hard because that may lead to damage to the probe;
l After use, do not soak the product, the soft cloth can be used to clean the probe and mirror host, and then into the ABS case, so as not to cause corrosion or damage to the instrument;
l The mirror and monitor are not allowed to be squeezed, impacted to prevent unnecessary damage. When the device is not in use, be sure to remove the battery to prevent damage to the battery and corrode the instrument.
-
-

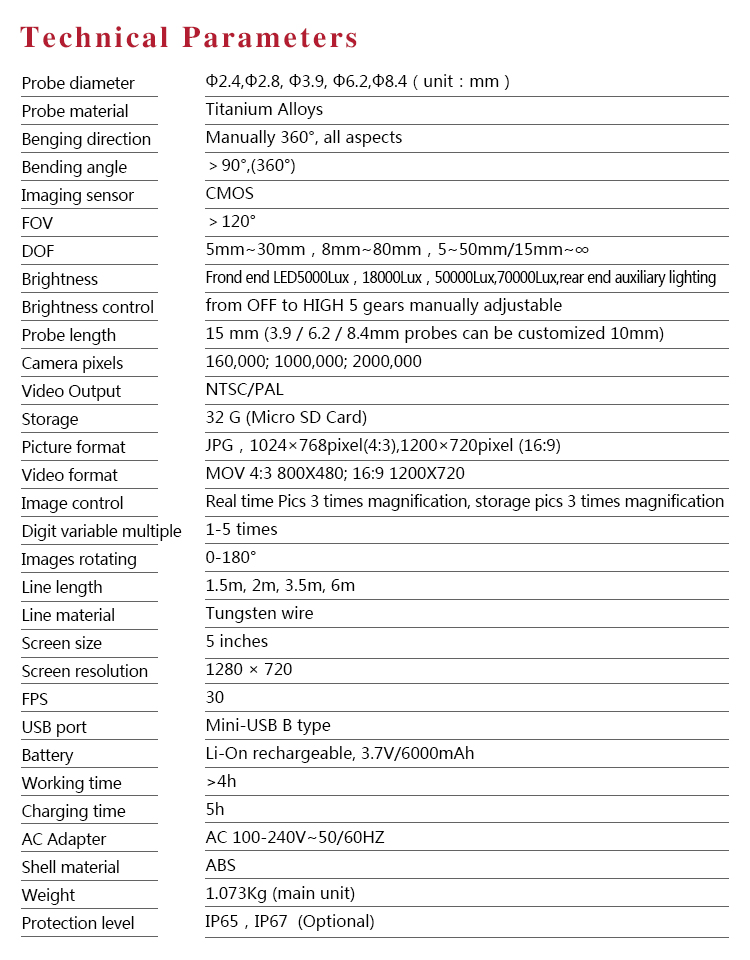

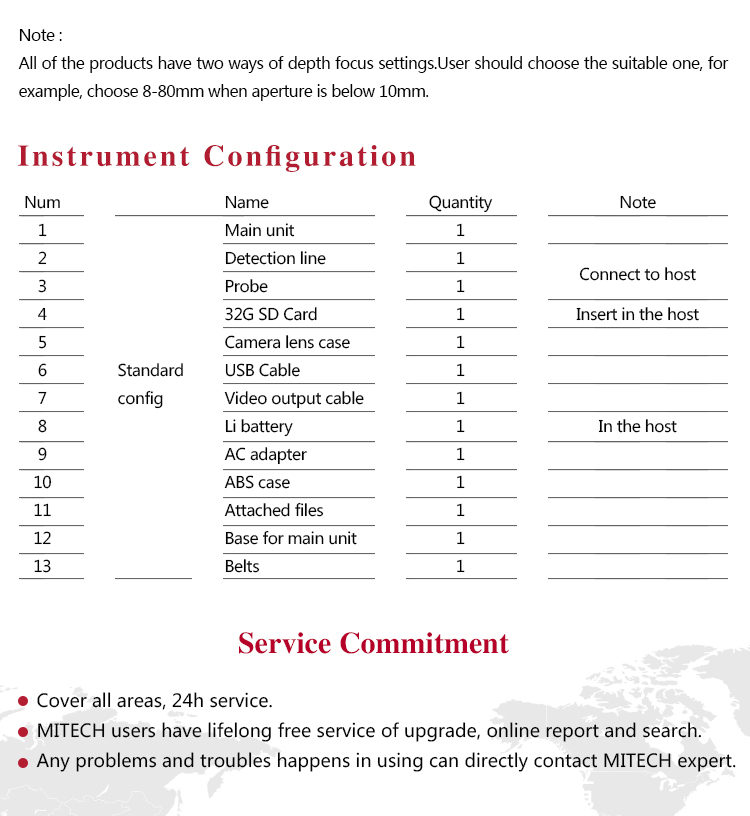

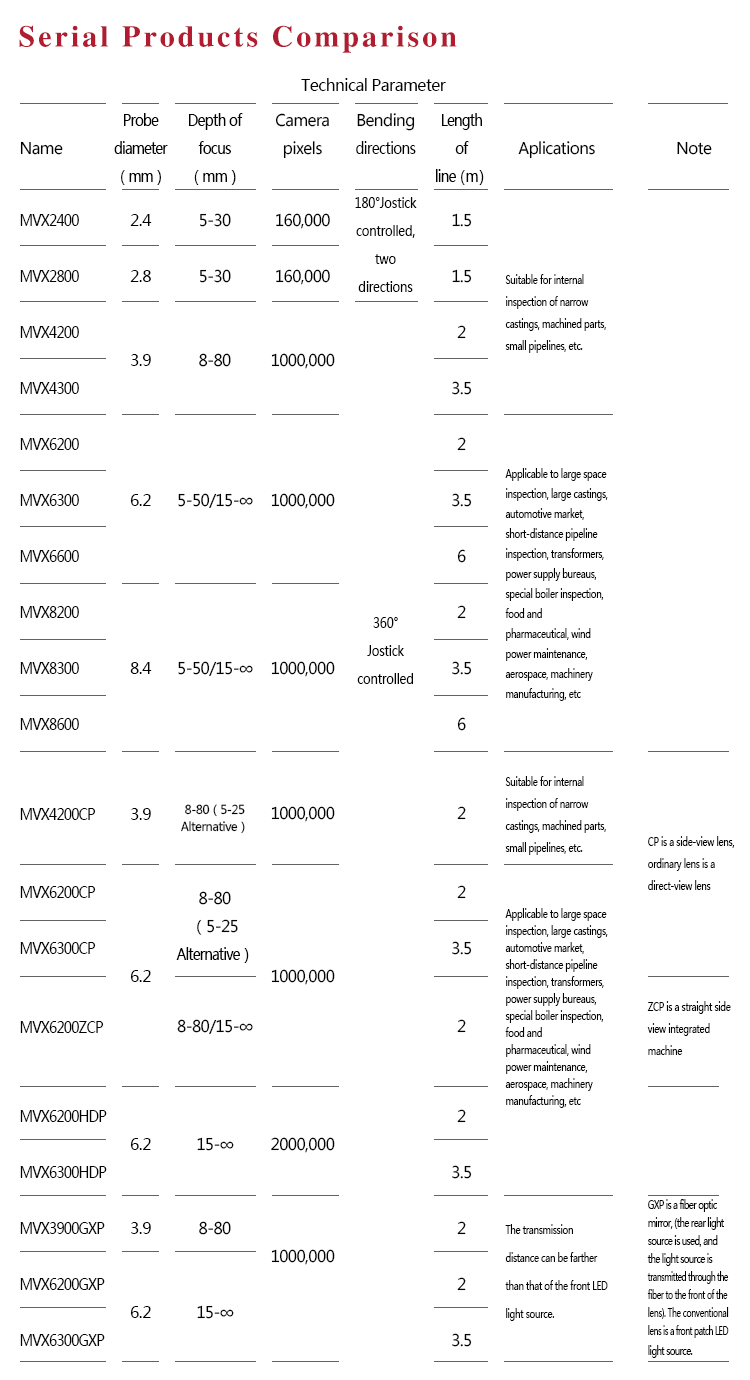

Probe diameter ?2.4, ?3.9, ?6,?8（unit：mm） Probe materia Titanium Alloys Bending angle ＞90°,(360°) Imaging sensor CMOS FOV ＞120° DOF 5mm~30mm，8mm~80mm，5~50mm/15mm~∞ Camera pixels 1000,000 Storage 32 G (Micro SD Card) Picture format ?JPG，1024×768pixel(4:3),1200×720pixel (16:9) Video format MOV 4:3 800X480,16:9 1200X720 Image control ?Real time Pics 3 times magnification, storage pics 3 times magnification Digit variable multiple 1-5 times Images rotating 0-180° Line length 1.5m，2m,3.5m, 6m Line material Tungsten?wire Probe direction 360° Screen size 5 inches Screen resolution 1280 × 720 USB port: Mini-USB B type Working time >4h Charging time 5h Weight 1.073Kg (main unit) Protection level IP65，IP67 (Optional) -
-
